About the Item:
Stainless Steel 304/201 Exhaust Joint/Exhaust Pipe with Mesh Braids,
It is a auto exhaust parts, connected with muffler,
it is installed in the exhaust pipe between the engine exhaust pipe and the muffler, which makes the connection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of exhaust system parts.
Mainly used for light trucks,small passenger cars and buses.The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.
Details:
| Product Name: | Interlock Exhaust Flex Pipe | Pipe Diameter: | 2.5 Inch |
| Usage: | Auto Exhaust Pipe | Length: | 100mm-300mm |
| Advantage: | Factory Manufacturer Price | Fitment: | Universal |
| Material: | Stainless Steel | Exhaust Gasket: | Yes |
| High Light: | 304/201 stainless flexible exhaust pipe | ||
Structure:
1. Flexible pipe with inner braid liner
2. Flexible pipe with interlock liner
3. Flexible pipe with inner bellow
4. Stainless steel Bellows
Specifications:
| Item | Diameter (mm) | Body Length(mm) | Oval Length (mm) |
| Auto Exhaust Joint/Exhaust Flexible Pipe | 45 | 100 | 100 |
| 45 | 150 | 150 | |
| 45 | 200 | 200 | |
| 45 | 250 | 250 | |
| 51 | 100 | 100 | |
| 51 | 150 | 150 | |
| 51 | 200 | 200 | |
| 51 | 250 | 250 | |
| 57 | 100 | 100 | |
| 57 | 150 | 150 | |
| 57 | 200 | 200 | |
| 57 | 250 | 250 | |
| 63 | 100 | 100 | |
| 63 | 150 | 150 | |
| 63 | 200 | 200 | |
| 63 | 250 | 250 | |
| 76 | 100 | 100 | |
| 76 | 150 | 150 | |
| 76 | 200 | 200 | |
| 76 | 250 | 250 | |
| 89 | 100 | 100 | |
| 89 | 150 | 150 | |
| 89 | 200 | 200 | |
| 89 | 250 | 250 | |
| 102 | 100 | 100 | |
| 102 | 150 | 150 | |
| 102 | 200 | 200 | |
| 102 | 250 | 250 |

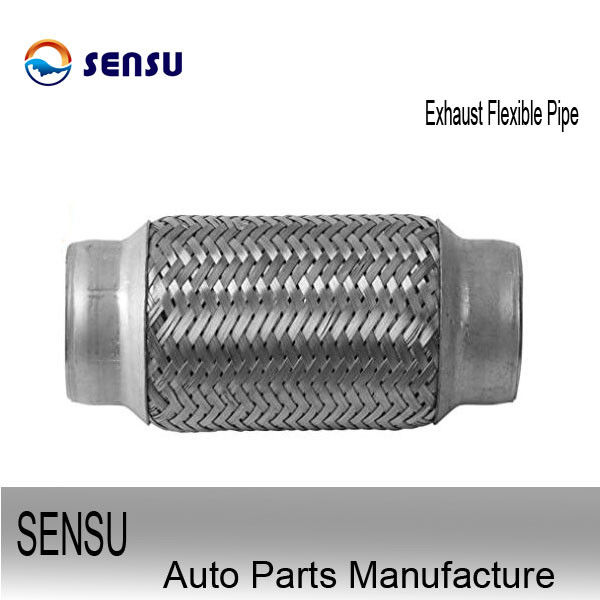

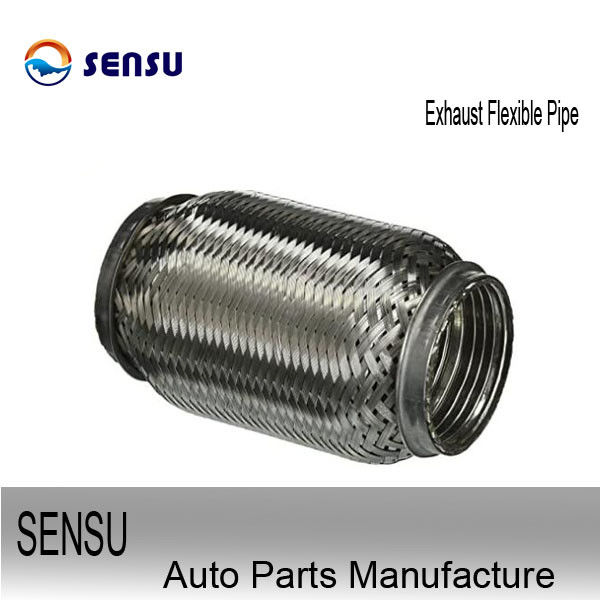

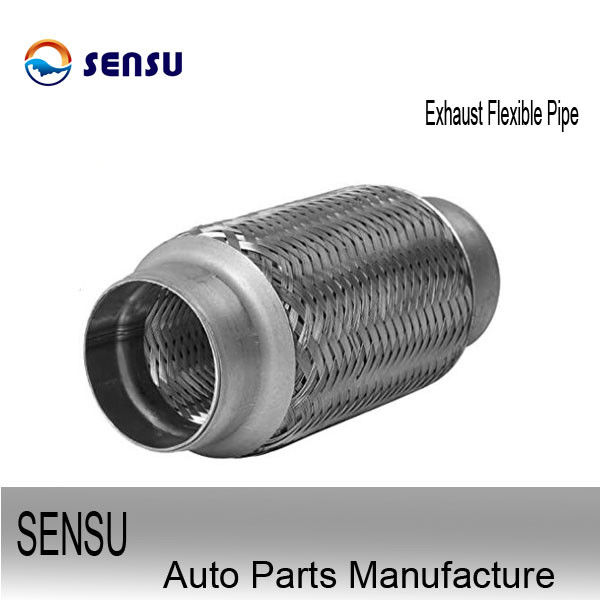

Products Pics
Feature Advantage:
high flexibility
anti-corrosion
resistant to extreme temperature,
reduce noise
decouple vibration
last the exhaust pipe life
Our products are sold all over the world, you can rest assured.
