SS201 Double Braid Auto Flex Exhaust Pipe Reduce Noise 51mm*203mm*303mm
About the Item:
Stainless Steel 304/201 Exhaust Joint/Exhaust Pipe with Mesh Braids,
It is a auto exhaust parts, connected with muffler,
it is installed in the exhaust pipe between the engine exhaust pipe and the muffler, which makes the connection of the entire exhaust system flexible and plays a role in reducing noise. Easy to install and extend the life of exhaust system parts.
Mainly used for light trucks,small passenger cars and buses.The structure is a double-layer corrugated pipe covered with a steel wire mesh sleeve, and the two ends are a straight edge segment outer snap ring structure. In order to improve the noise reduction effect, an expansion joint or mesh sleeve can be installed in the bellows.
Details:
| Product Name | Exhaust Flexible Pipe |
| Size | Diameter 1.5 - 5 inch length 4-10 inch |
| Structure |
bellows with external braid bellows with external braid and internal braid bellows with external braid and internal interlock bellows with external braid and nipple bellows with external braid, internal braid and nipple bellows with external braid, internal interlock and nipple |
| Material | Stainless Steel |
| Price Term | EXW, FOB, C&F, CIF |
| Payment Term | 50% in advance. balance will be paid before delivery |
| Payment Method | T/T , L/C |
| Departure port | Tianjin,China |
| Delivery Time | About 30days. Quick delivery if on stock |
| Packing Details | Negotiated Standard Exporting Packaging |
| Shipment | By sea or By air |
| Sample | Available |
| Others |
the inner diameter and the length can be done as client's requirments Cap:aluminized steel or stainless steel Braid:φ0.3mm,composed with 9 or 12 wires. Extension tube:aluminized steel or stainless steel, can be produced as per requirement.Normally 2" in length |
Structure:
1. Flexible pipe with inner braid liner
2. Flexible pipe with interlock liner
3. Flexible pipe with inner bellow
4. Stainless steel Bellows
Specifications:
| Item | Diameter (mm) | Body Length(mm) | Oval Length (mm) |
| Auto Exhaust Joint/Exhaust Flexible Pipe | 45 | 100 | 200 |
| 45 | 150 | 250 | |
| 45 | 200 | 300 | |
| 45 | 250 | 350 | |
| 51 | 100 | 200 | |
| 51 | 150 | 250 | |
| 51 | 200 | 300 | |
| 51 | 250 | 350 | |
| 57 | 100 | 200 | |
| 57 | 150 | 250 | |
| 57 | 200 | 300 | |
| 57 | 250 | 350 | |
| 63 | 100 | 200 | |
| 63 | 150 | 250 | |
| 63 | 200 | 300 | |
| 63 | 250 | 350 | |
| 76 | 100 | 200 | |
| 76 | 150 | 250 | |
| 76 | 200 | 300 | |
| 76 | 250 | 350 | |
| 89 | 100 | 200 | |
| 89 | 150 | 250 | |
| 89 | 200 | 300 | |
| 89 | 250 | 350 | |
| 102 | 100 | 200 | |
| 102 | 150 | 250 | |
| 102 | 200 | 300 | |
| 102 | 250 | 350 |

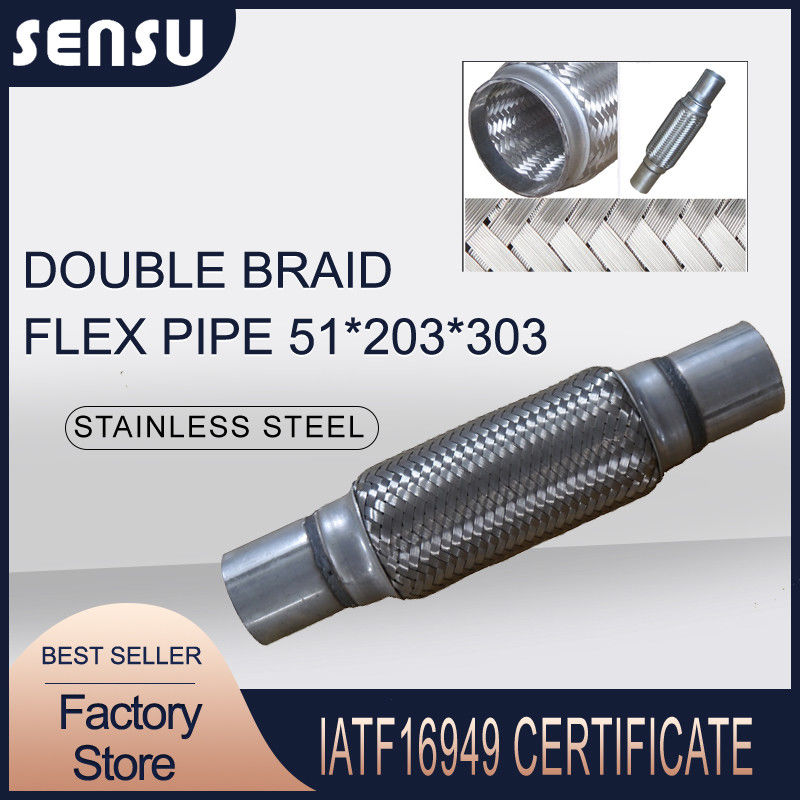

Products Pics
SS201 Double Braid Auto Flex Exhaust Pipe Reduce Noise 51mm*203mm*303mm
